eRider 480
Powerful and fast charging tools for your EV fleet
eRider Series
eRider 480 kW
The eRider 480 is a high-power distributed DC charging solution with up to 480kW output and intelligent power sharing across multiple connectors for flexible, efficient EV charging. Supporting both liquid-cooled and air-cooled terminals, it is designed for larger battery capacities and long-distance driving needs. Its modular architecture, advanced charging control system, flexible load distribution, and multiple safety protections ensure stable, reliable, and ultra-fast charging performance.
Structure of eRider 480
v
Features

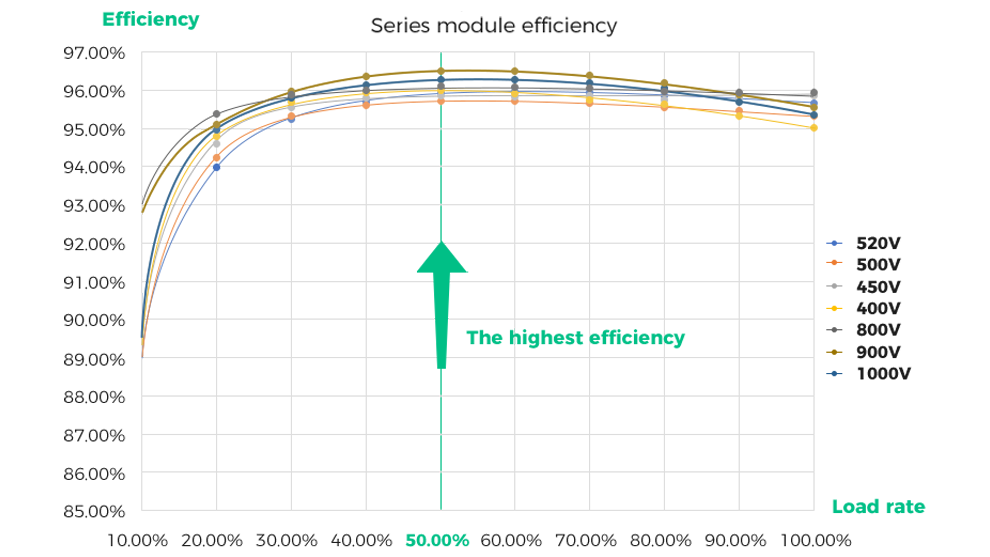

System active efficiency optimization
The eRider 480 charging system intelligently manages up to 24 power modules to maintain optimal efficiency, achieving up to 96% system efficiency. Compared to a 95% efficient charger, a 480kW charger operating six vehicles at 80kW can significantly reduce energy loss and save over 11,500kWh of electricity annually when used six hours per day.
Technical Parameters
| Model | eRider 480 |
|---|---|
Input voltage | 400 VAC +/- 10% |
Input frequency | 50 / 60 Hz |
Input type | 3P + N + PE |
Rated & Maximum current per connector | CCS2(air cooling): 200A / 350A CCS2(liquid cooling): 500A (boost 600A); |
Power factor | 0.99 |
Grounding type | TN-S, TT |
Connector options | CCS2 |
Output voltage | 200~ 1000V |
Rated power | 360 kW - 480 kW |
Peak efficiency | 96% |
IP and IK rating | IP55/ IK10 |
Dimensions (W*D*H) | Power Bank: 1600mm * 1100mm * 2100mm |
Weight | Power Bank: 900 kg |
Cooling method | Air cooling / Liquid cooling |
EMC | Class A (industrial) |
