eRider 30
Powerful and fast charging tools for your EV fleet
eRider Series
eRider 30 kW
The eRider 30 kW integrated charger features a modular, industrial design, making it an ideal, cost-effective solution for destination charging in residential complexes and commercial parking lots. With smart functions and user-friendly operation, it delivers a convenient and stable EV charging experience.

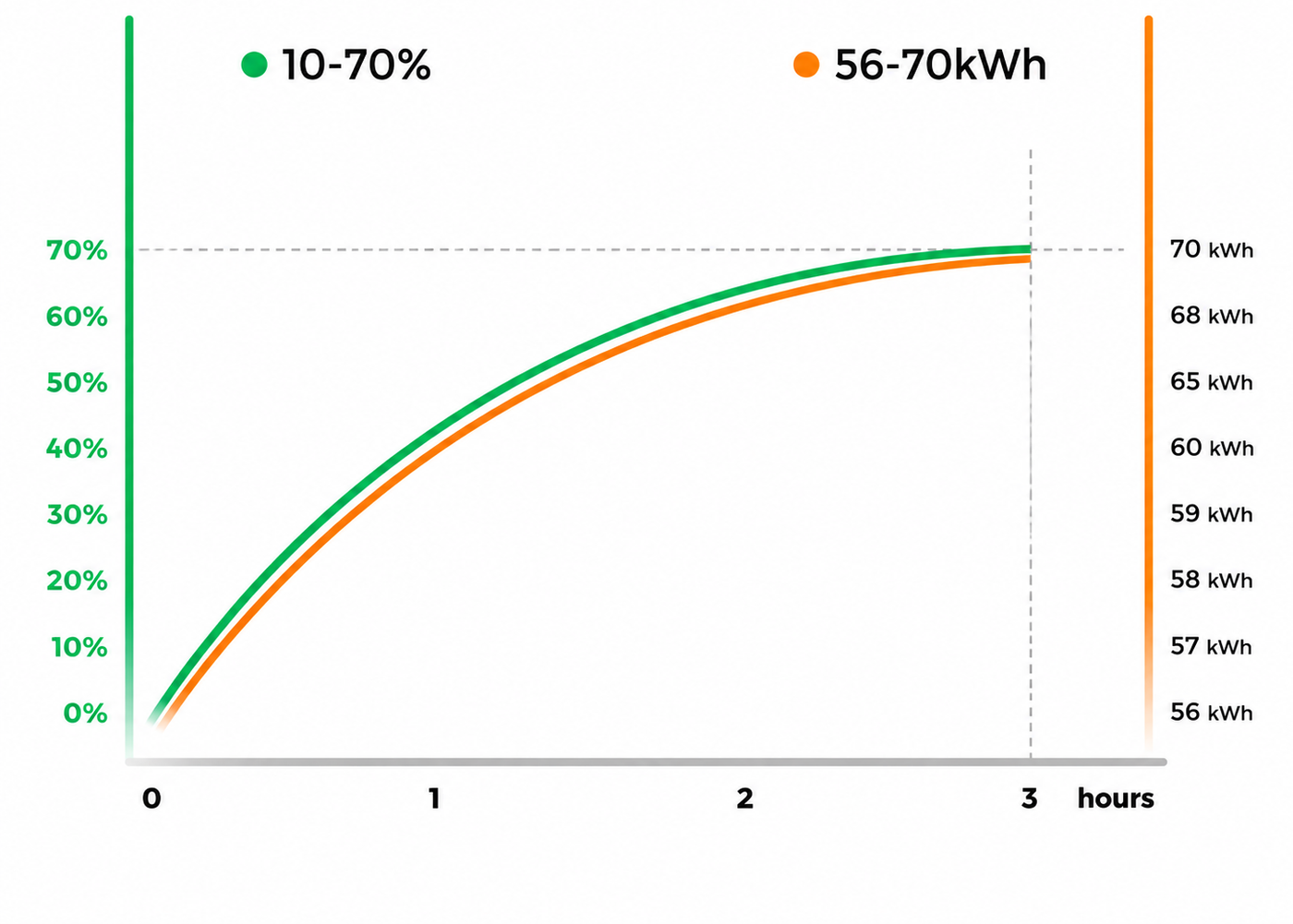

Smart choice for destination charging
eRider 30 is perfectly suited for the scenario of people staying for a few hours at the planned stops along the way, ready to charge EVs at an acceptable and reasonable time.
Technical Parameters
| Model | eRider 30 |
|---|---|
Input voltage | 380 VAC +/- 10% |
Input frequency | 50 / 60 Hz |
Input type | 3P + N + PE |
Input current | 50A |
Input power | 33kVA |
Power factor | 0.99 |
Grounding type | TN-S, TN-CS |
Connector options | Single connector, CCS2 or CHAdeMO |
Output voltage | CCS2: 50-1000 Vdc |
Rated power | DC: 30kW |
Peak efficiency | 96% |
IP and IK rating | IP55/ IK10 |
Dimensions (W*D*H) | 550 mm * 700 mm * 200 mm |
Weight | ≤65 kg |
Cooling method | Air cooled |
Payment method | RFID/APP/Credit card |
EMC | Class A (industrial) |
