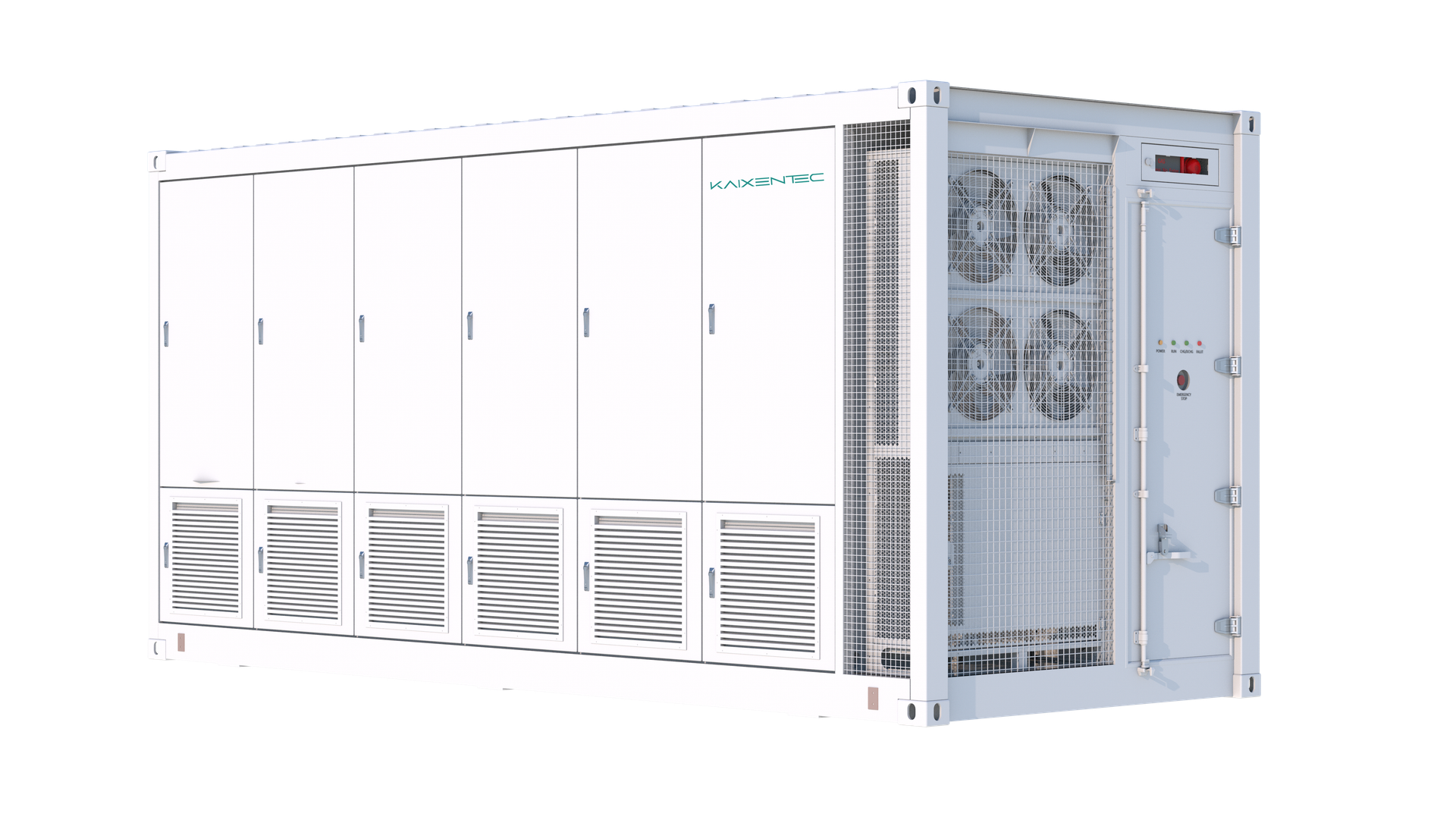

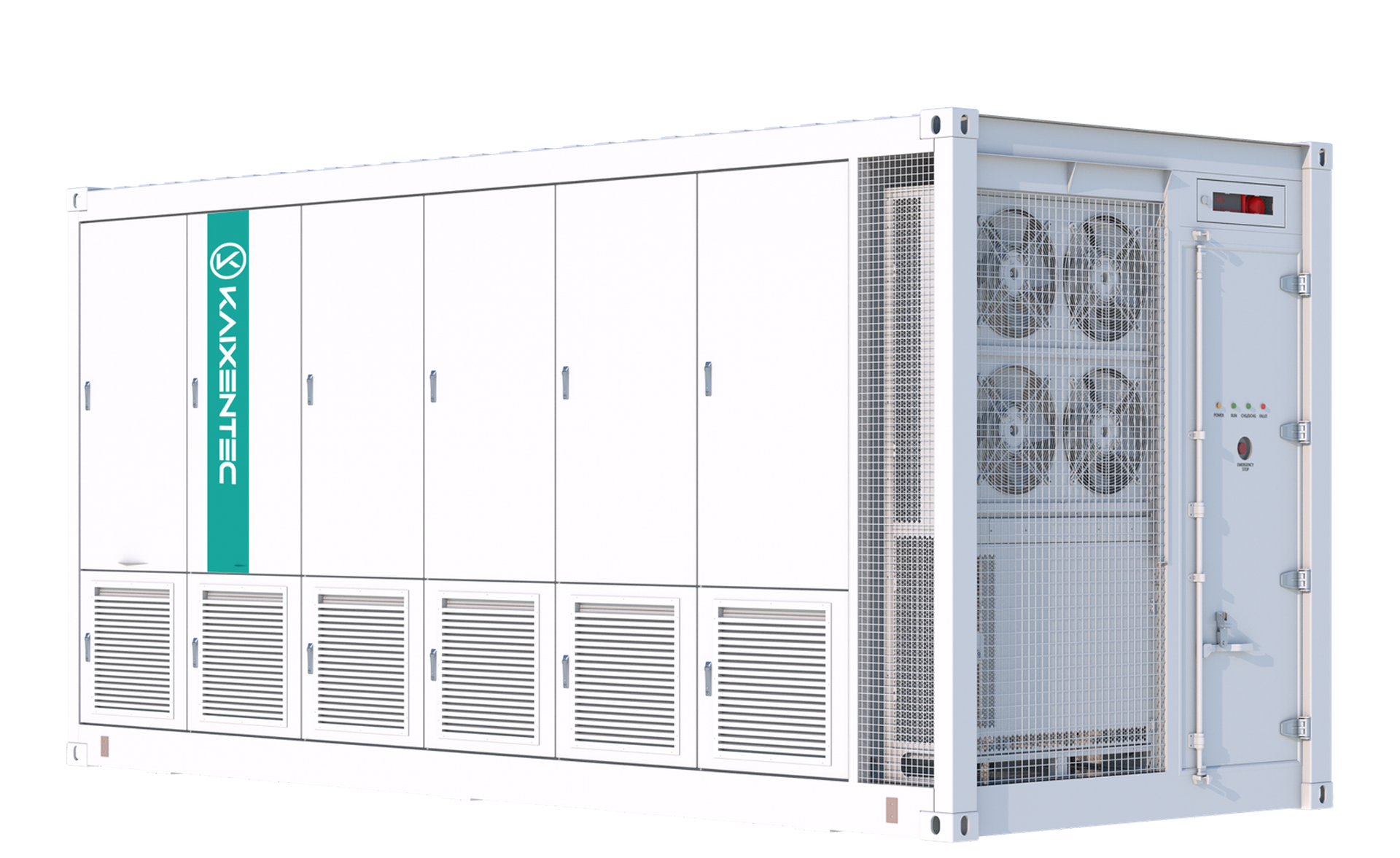

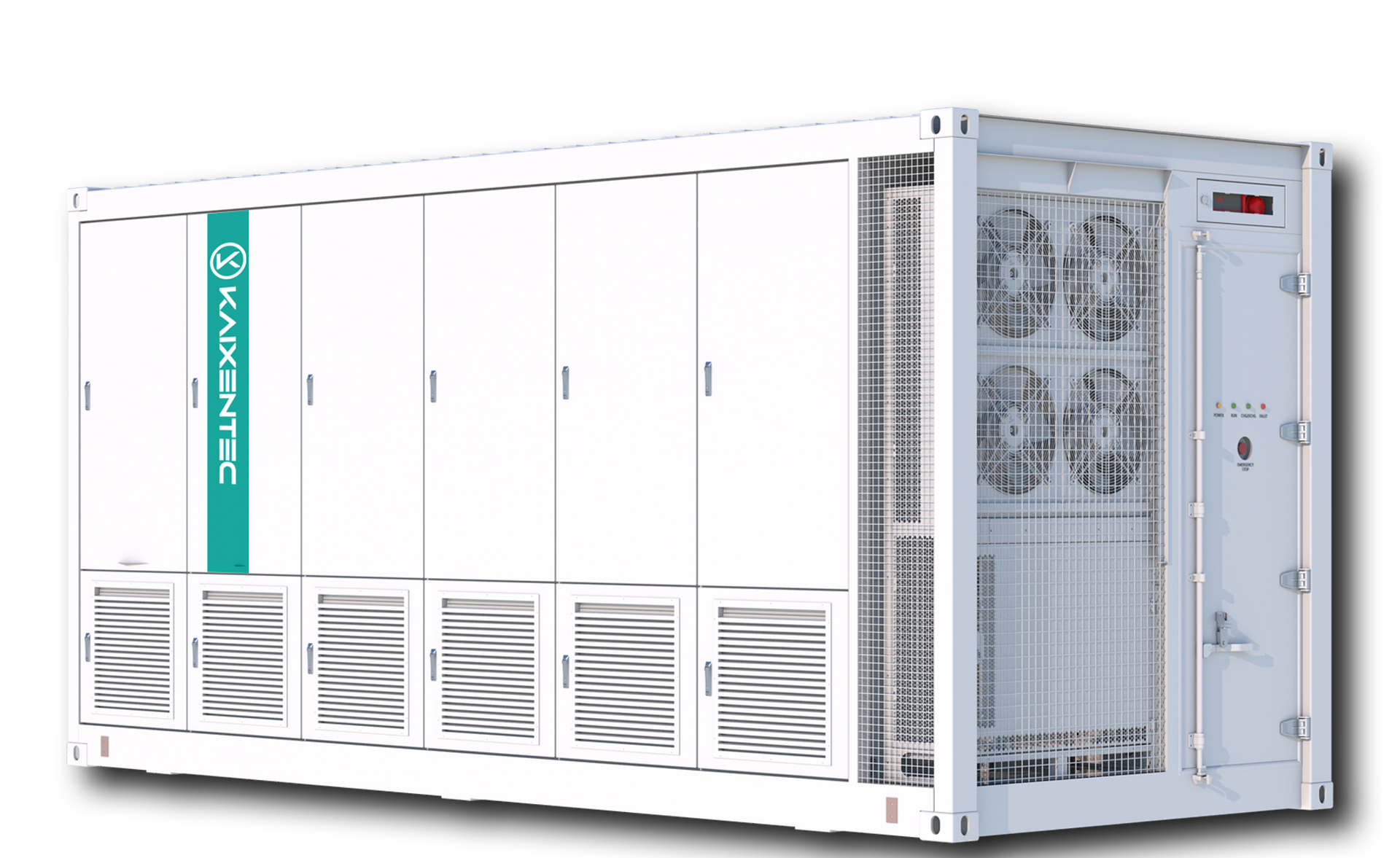

TITAN 3 MWh
Overview
The Titan is a high-performance, AC-coupled energy storage system designed for commercial, industrial, and grid-connected applications. Available in configurations from 1.56 MWh to 3.13 MWh and 0.75 MW to 1.5 MW, it features a modular, liquid-cooled architecture with advanced thermal management for high efficiency, reliable operation, and extended battery life. Intelligent controls, active balancing, and integrated safety systems enable flexible deployment for peak shaving, renewable energy integration, and critical backup power.
Download spec sheet

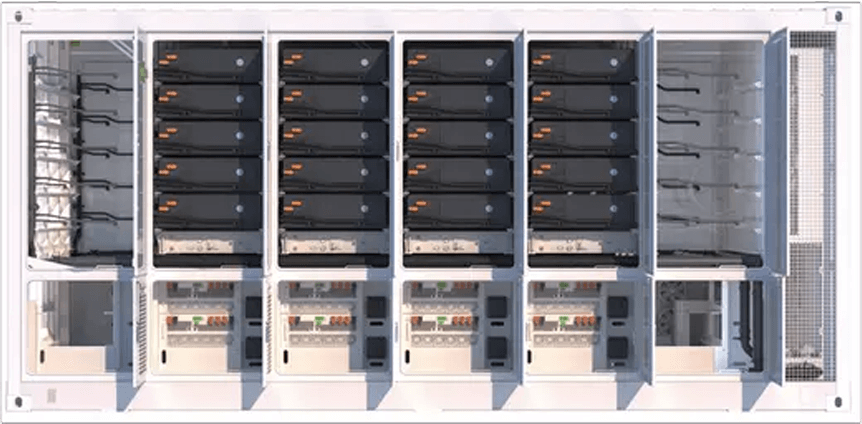

Modular Architecture
Flexible expansion according to project requirements

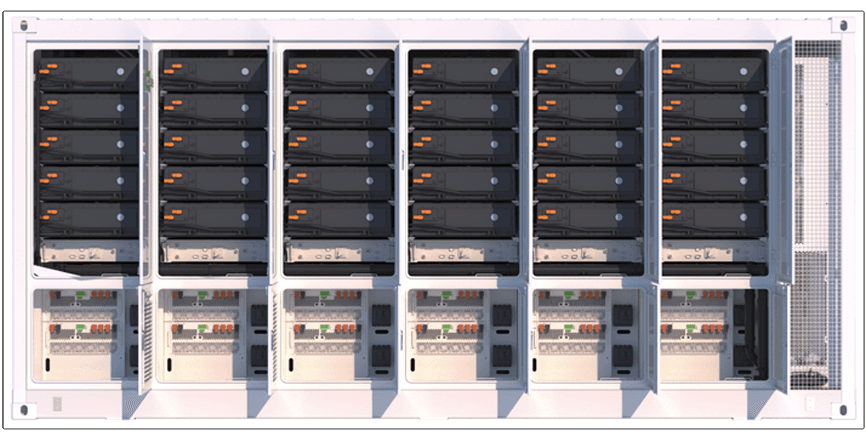

Titan 3.13MWh-1.5MW-DP
String energy storage system - 12 clusters

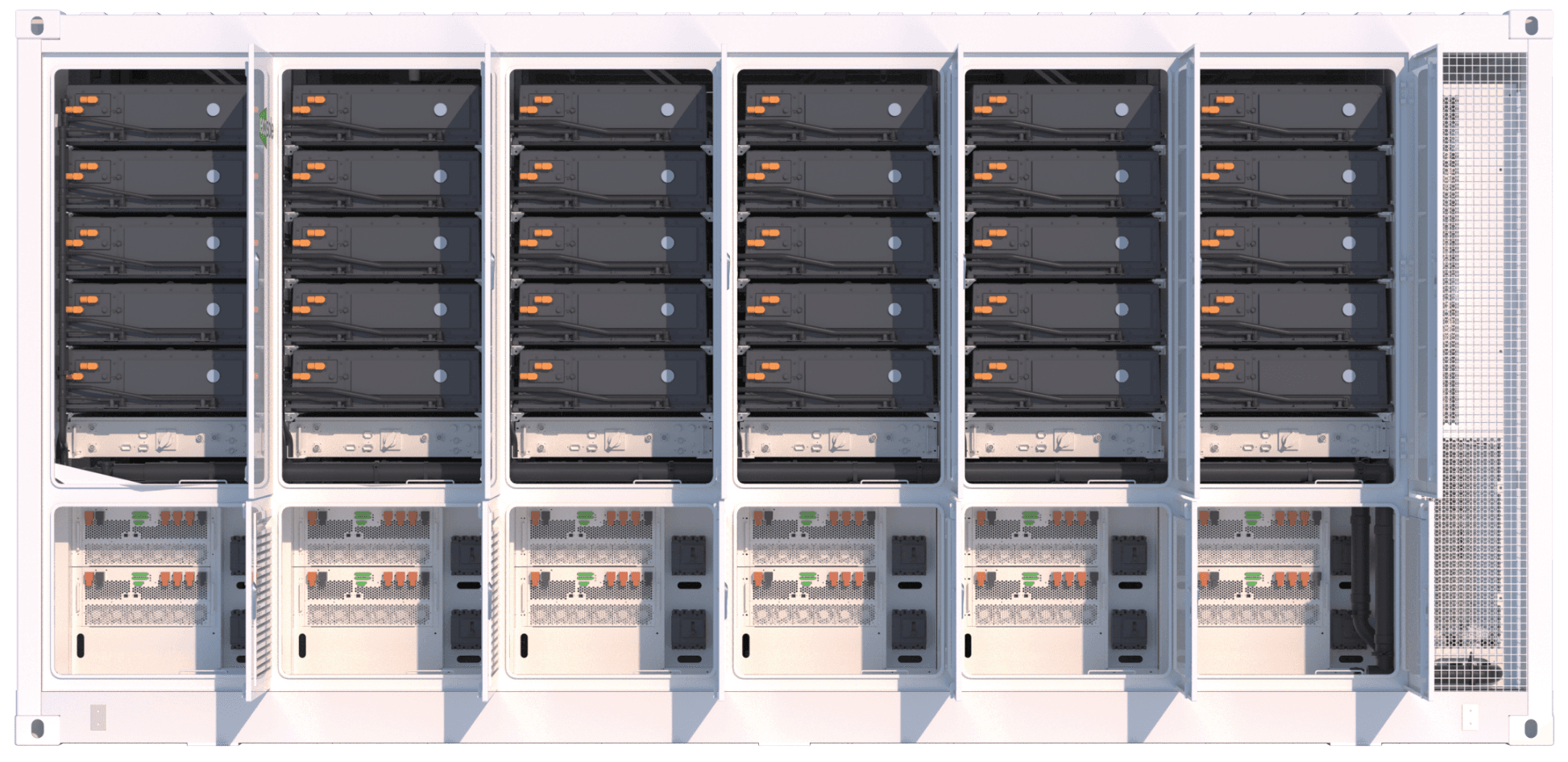

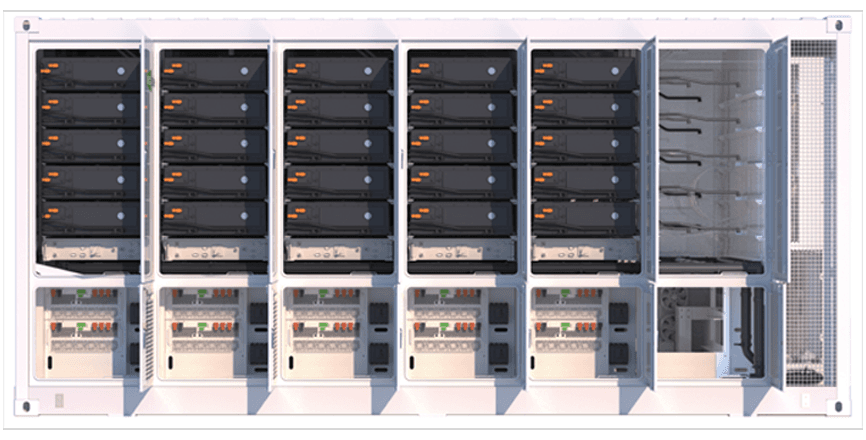

Titan 2.6MWh-1.25MW-DP
String energy storage system - 10 clusters

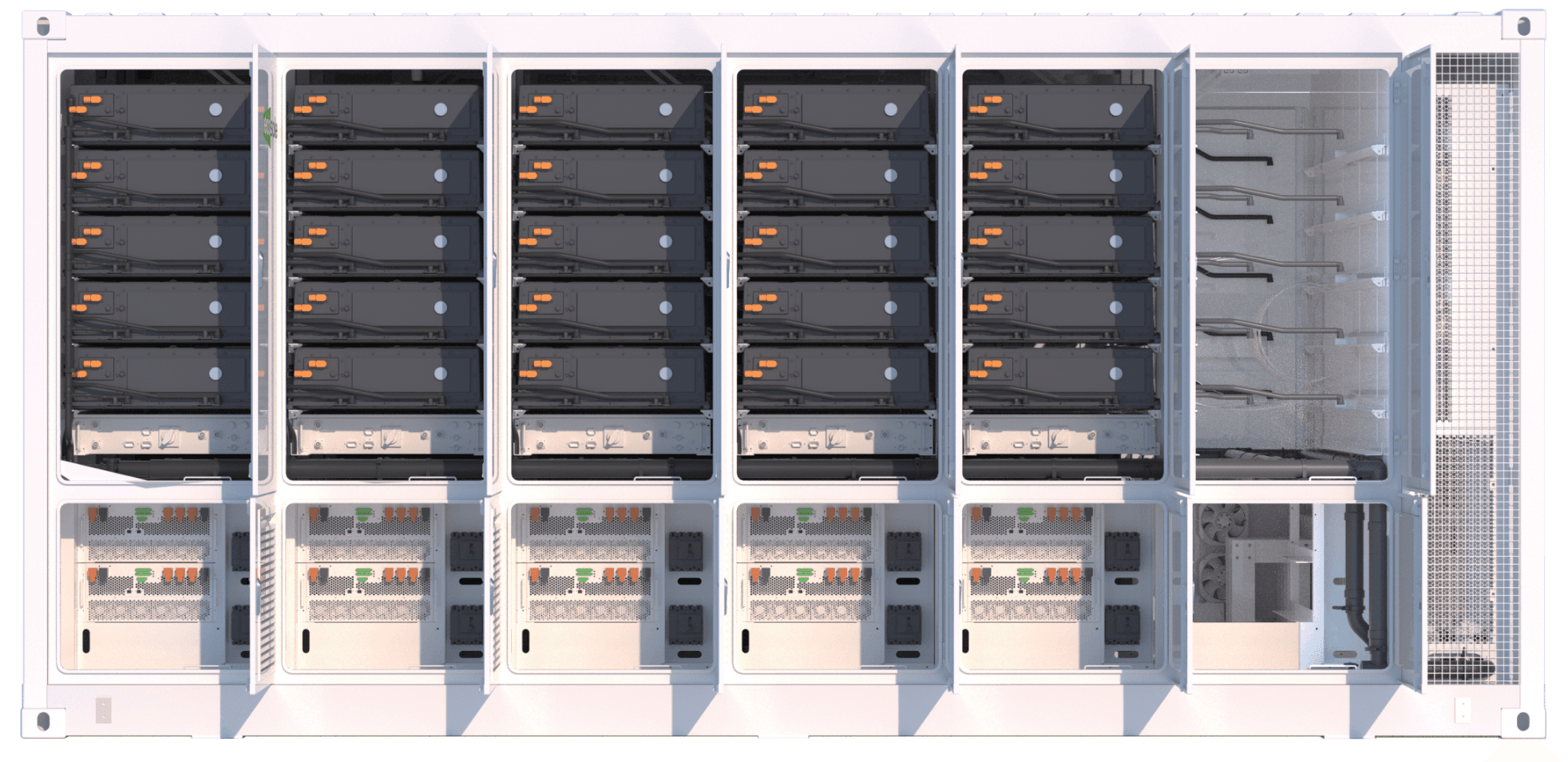

Titan 2.08MWh-1MW-DP
String energy storage system - 8 clusters

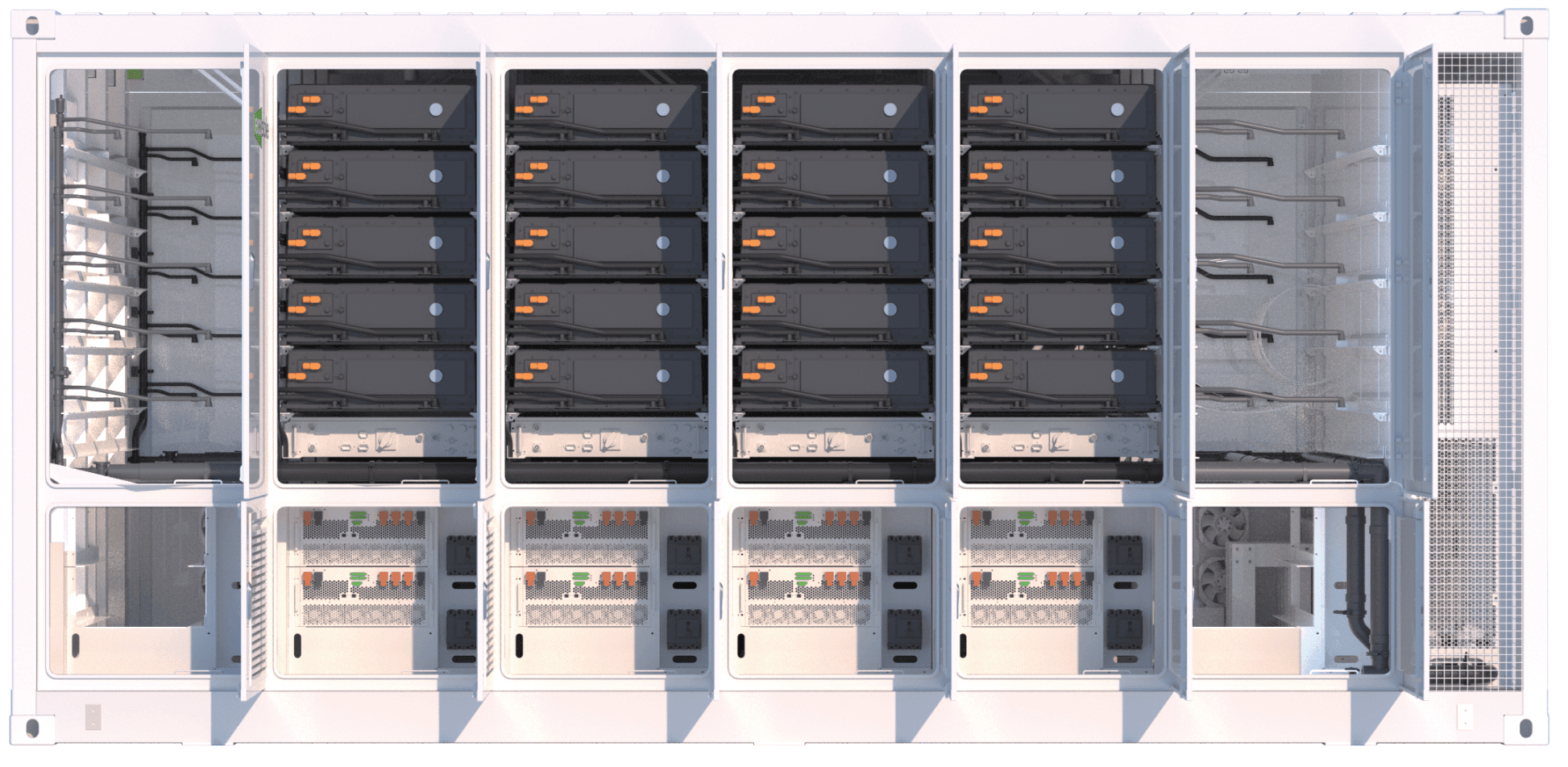

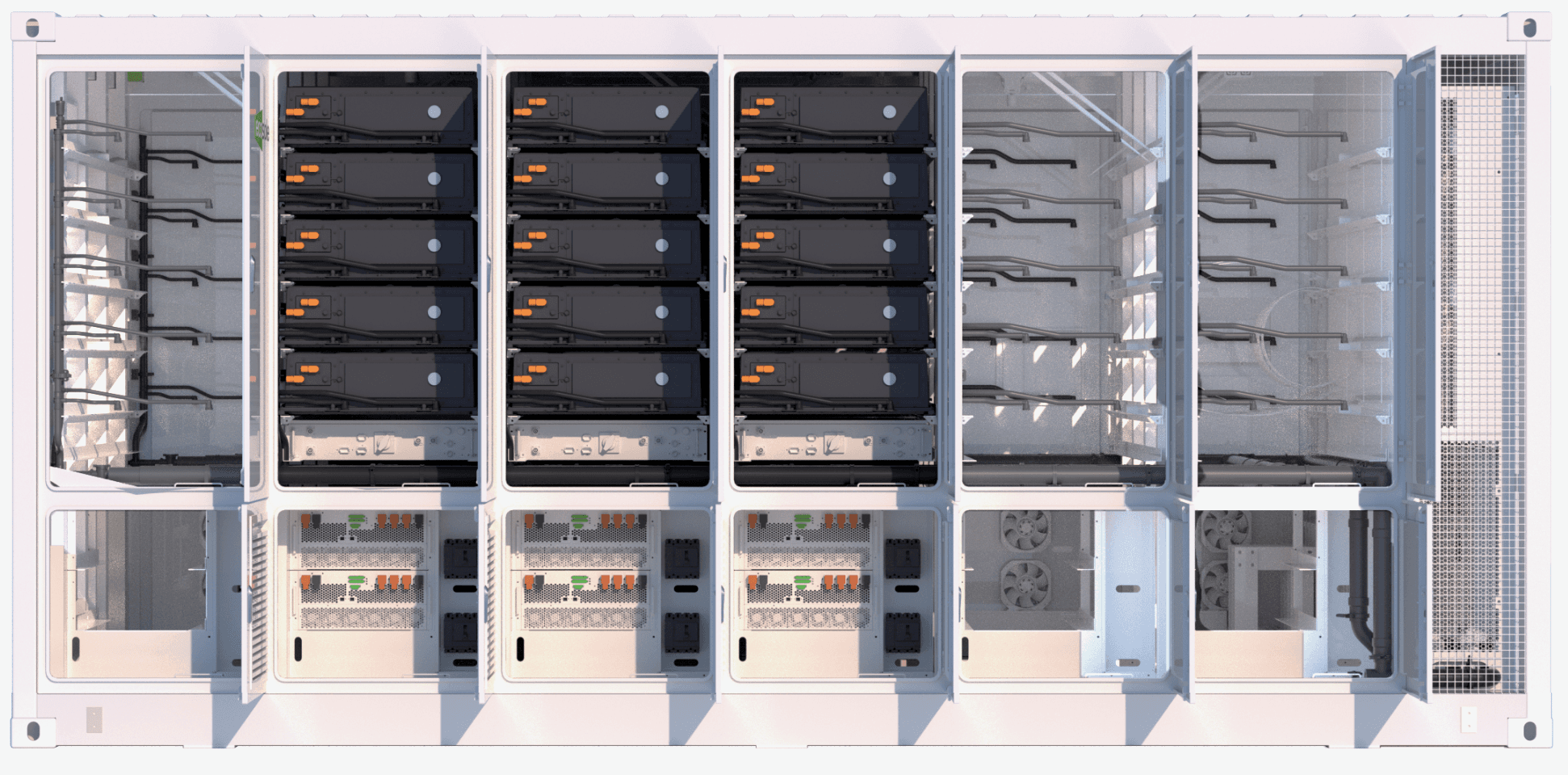

Titan 1.56MWh-750KW-DP
String energy storage system - 6 clusters
Applications
Reduce peaks and fill valleys
By charging during off-peak hours for energy storage and discharging during peak hours for energy supply, the electricity costs of enterprises or parks can be reduced, saving electricity bills for customers at the power consumption end
Demand response
When the short-term power consumption exceeds the capacity of the transformer, the energy storage system discharges rapidly to meet the power demand of the load.
Electricity trading
On the electricity market trading platform, short-term electricity trading is conducted in combination with load forecasting to maximize profits.
Off-grid backup power supply
In the event of a power outage, provide uninterrupted short-term power supply to important loads to reduce economic losses caused by sudden power failure of the loads
Reduce the waste of wind and solar energy
Address the insufficient capacity of the power grid, alleviate the problem of wind and solar power curtailment from renewable energy sources, and enhance energy utilization efficiency
Technical Parameters
For more technical information, please refer to the product Technical Specifications.
| Parameters | Titan 3MWh-1.5MWh-DP |
|---|---|
Battery capacity | 3.134 MWh |
Rated output power | 1500 W |
Cell type | LFP 3.2V / 314 Ah |
Rated AC output voltage | 400 V |
Weight | 30 Tonnes |
Ingress Protection | IP55 |
