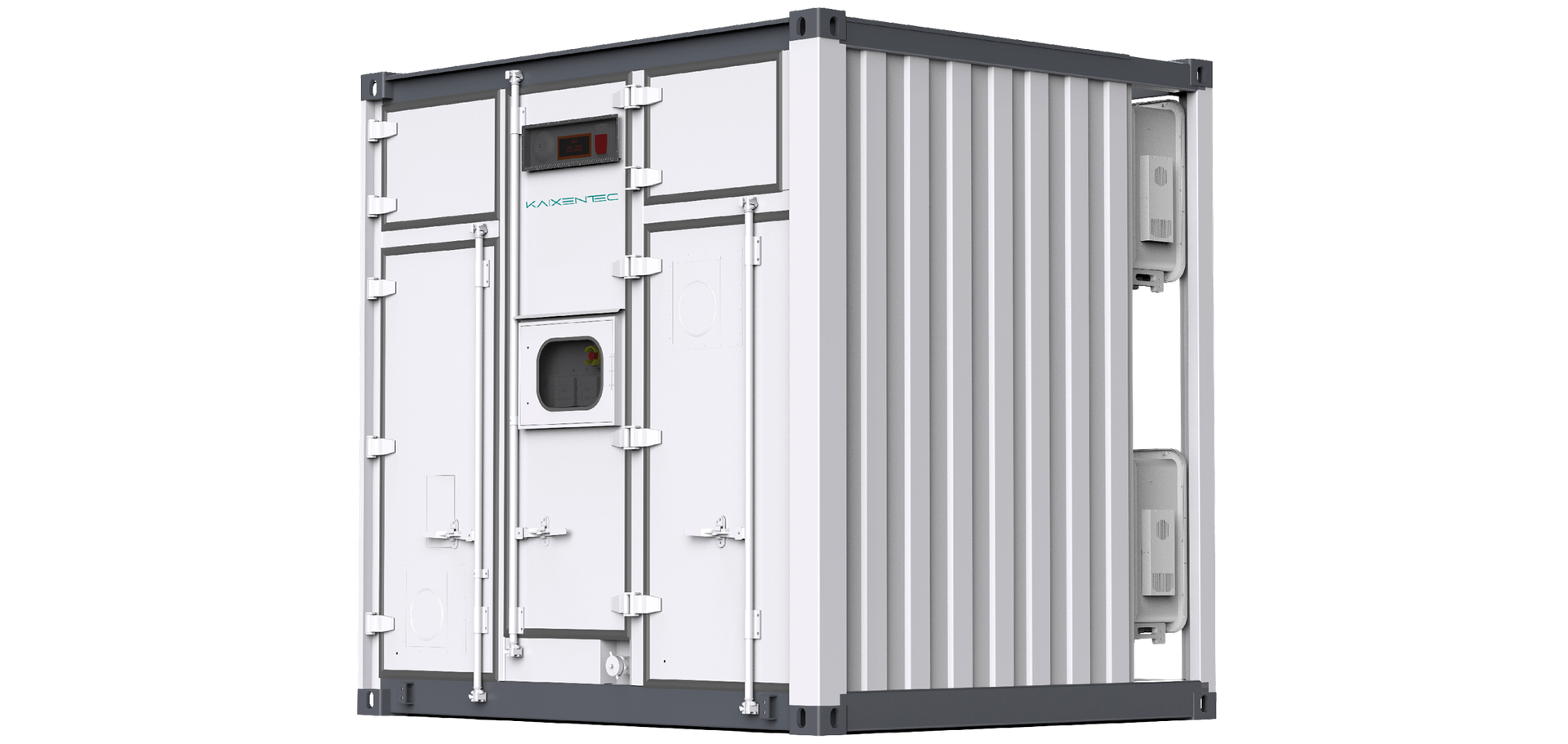

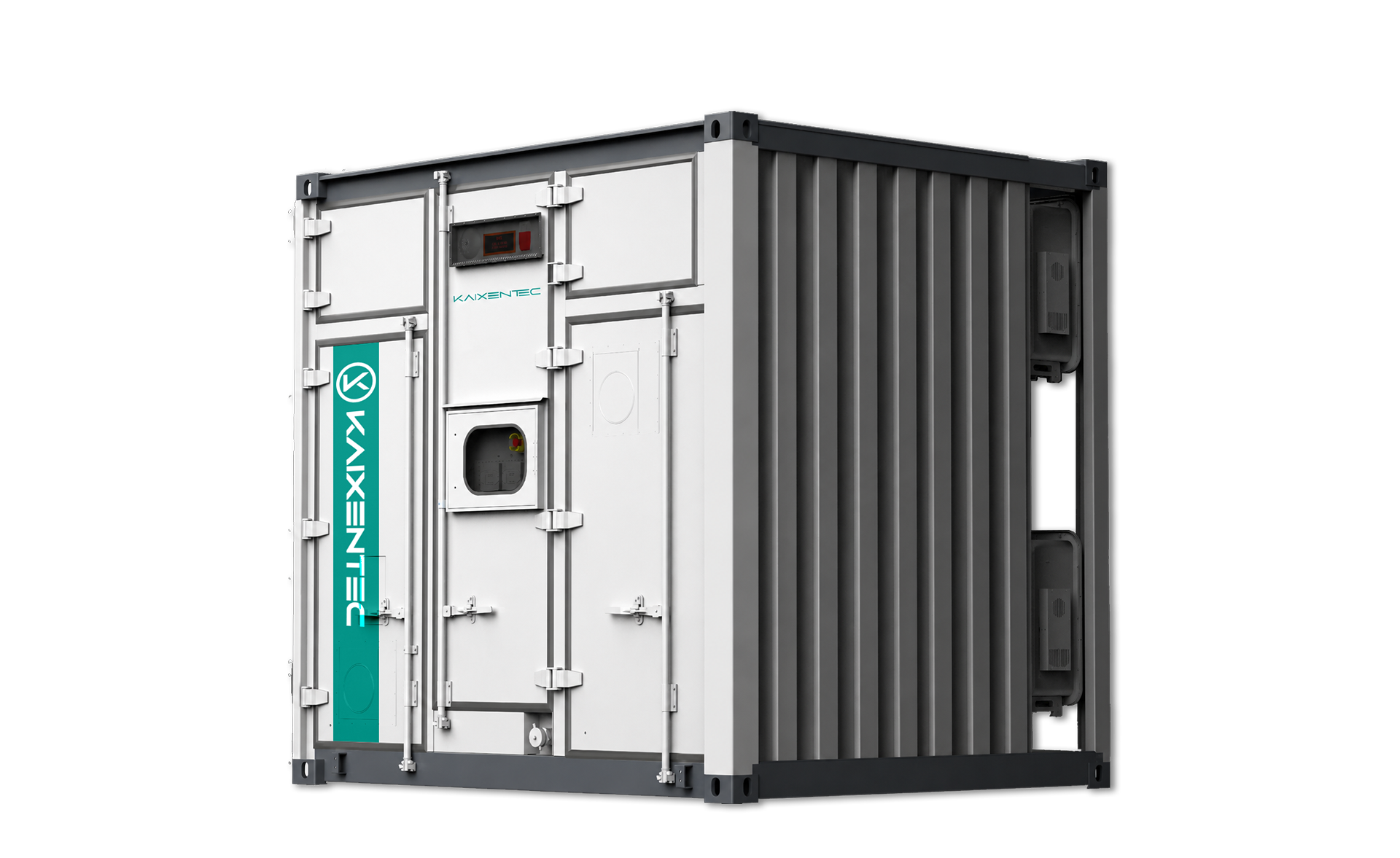

TITAN 1 MWh
Built as a compact, liquid-cooled hybrid energy storage container supporting grid, diesel, and photovoltaic inputs. Integrated high-density system with batteries, BMS, EMS, fire protection, and hybrid inverters for seamless operation. Delivers <20 ms off-grid switching with modular scalability from 125 kW / 522 kWh to 500 kW / 1044 kWh for flexible deployment
Learn more
Components
1
Liquid cooler
The Titan 1 MWh uses an advanced liquid cooling system to maintain uniform cell temperatures, improvin g efficiency, safety, and overall battery lifespan
2
Battery cells
Titan Series battery cells use advanced LFP technology with high-capacity 314Ah design, delivering safe, stable, and long-lasting performance. Optimized for efficiency and supported by liquid cooling, they ensure reliable power in even the most demanding applications
3
HV Box
The Titan Series high-voltage (HV) box enables efficient and reliable energy distribution with a 1000V DC/DC architecture and dual input/output design. It ensures stable power flow between battery packs and inverters, supporting flexible system operation and high-performance energy management.
4
Energy Management System
The EMS provides real-time data acquisition, energy management, protocol conversion, and edge computing, with cloud integration for monitoring, analytics, alarms, and system control. It supports applications like industrial energy storage, microgrids, and charging systems, and works with multiple communication protocols. Using AI-based optimization, it enables forecasting, load balancing, and efficient, cost-effective use of energy and renewable resources.
AN INTEGRATED SOLUTION
TITAN 1 MWh

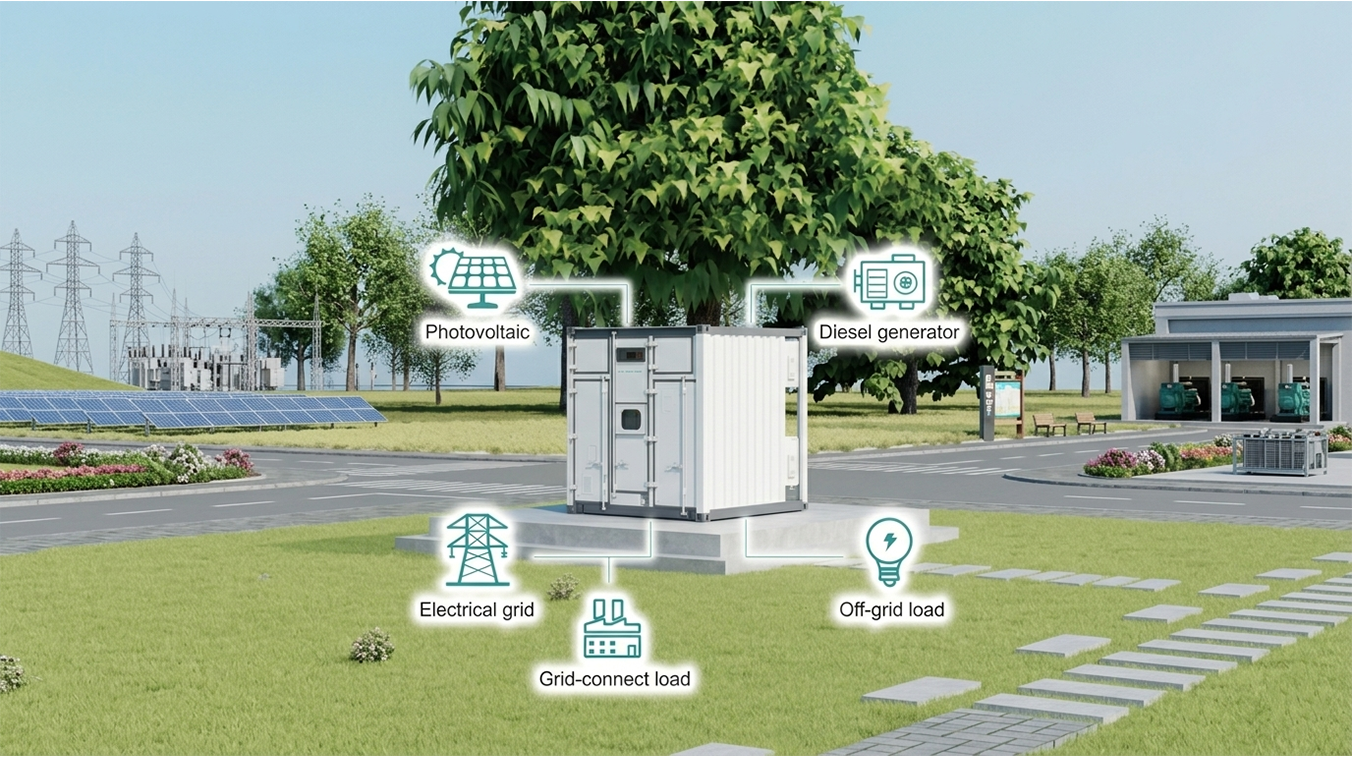

The Titan 1 MWh system supports flexible connectivity across multiple energy sources and loads, including diesel generators, the electric grid, and photovoltaic systems. It can seamlessly supply both grid-connected and off-grid loads, enabling hybrid operation and ensuring reliable power delivery across a wide range of applications.
Technical Parameters
| Model (Power/Capacity) | 250kW/ 522kWh | 375kW/ 783kWh | 500kW/ 1044kWh | 125kW/ 522kWh | 250kW/ 1044kWh |
|---|---|---|---|---|---|
Battery parameters |
|
|
|
|
|
Single Battery Specifications |
|
| LFP 314 Ah |
|
|
Rated Operational Voltage (V) |
|
| 832 |
|
|
Rated Discharge Rate of Electricity (C) | 0.5 | 0.5 | 0.5 | 0.25 | 0.25 |
Container Protection Grade |
|
| IP54/IP55 |
|
|
Reference weight (t) | ≈ 7.5 | ≈ 9.5 | ≈ 11.5 | ≈ 7 | ≈ 11 |
PV Side Parameters |
|
|
|
|
|
Max Input Power (kW) | 500 | 750 | 1000 | 250 | 500 |
