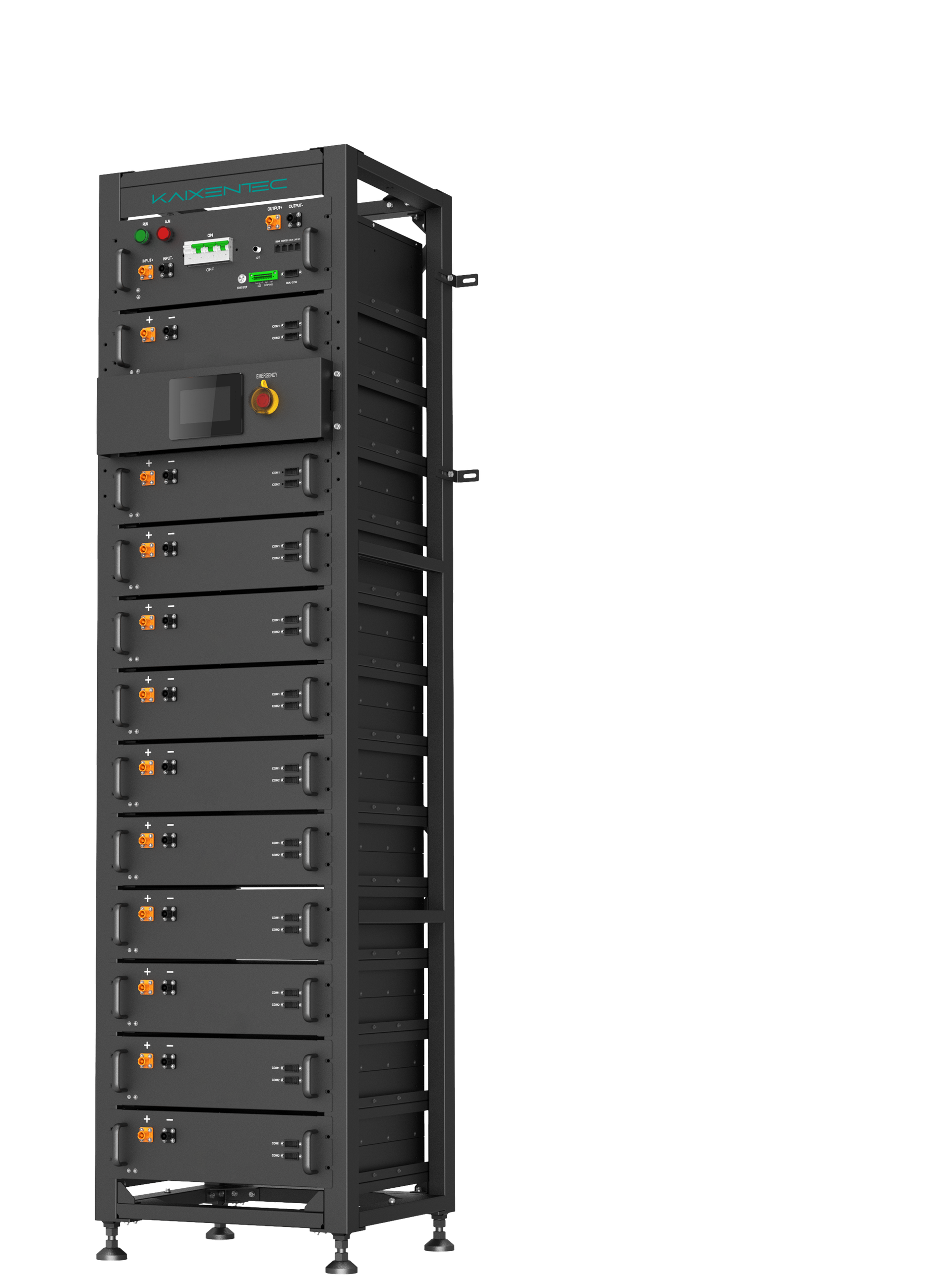

Shogun Series

High-voltage modular lithium battery systems for scalable residential and small commercial energy storage.

Overview

The Shogun Series is a modular high-voltage lithium battery system designed to deliver safe, reliable, and scalable energy storage for residential and light commercial applications. Built with Grade A LiFePO₄ battery technology, an intelligent Battery Management System (BMS), and advanced safety protection, it provides outstanding performance and long service life. Its flexible modular architecture supports multiple system configurations and seamless compatibility with leading hybrid inverters, making it ideal for self-consumption, backup power, off-grid systems, and renewable energy integration.

Download spec sheet

Technical Parameters

For more technical information, please refer to the product Technical Specifications.

Model	204V-100A	153V-100A	307V-100A	256V-100A	358V-100A	409V-100A	460V-100A	512V-100A	563V-100A	614V-100A
Battery energy	15.36 kWh	20.48 kWh	25.6 kWh	30.72 kWh	35.84 kWh	40.96 kWh	46.08 kWh	51.2 kWh	56.32 kWh	61.44 kWh
Battery modules	3 pcs	4 pcs	5 pcs	7 pcs	6 pcs	8 pcs	9 pcs	10 pcs	11 pcs	12 pcs
Module voltage	51.2 V	51.2 V	51.2 V	51.2 V	51.2 V	51.2 V	51.2 V	51.2 V	51.2 V	51.2 V
System voltage	153.6 V	204.8 V	256 V	307.2 V	358.4 V	409.6 V	460.8 V	512 V	563.2 V	614.4 V
Module energy	5.12 kWh	5.12 kWh	5.12 kWh	5.12 kWh	5.12 kWh	5.12 kWh	5.12 kWh	5.12 kWh	5.12 kWh	5.12 kWh
Cell Capacity	100 Ah	100 Ah	100 Ah	100 Ah	100 Ah	100 Ah	100 Ah	100 Ah	100 Ah	100 Ah
Communication type	RS485 / CAN	RS485 / CAN	RS485 / CAN	RS485 / CAN	RS485 / CAN	RS485 / CAN	RS485 / CAN	RS485 / CAN	RS485 / CAN	RS485 / CAN
Dimension (WDH)	5465841560 mm	5465841560 mm	5465841560 mm	5465841560 mm	5465841560 mm	5465841560 mm	5465842121 mm	5465842121 mm	5465842121 mm	5465842121 mm
IP rating	IP20	IP20	IP20	IP20	IP20	IP20	IP20	IP20	IP20	IP20
