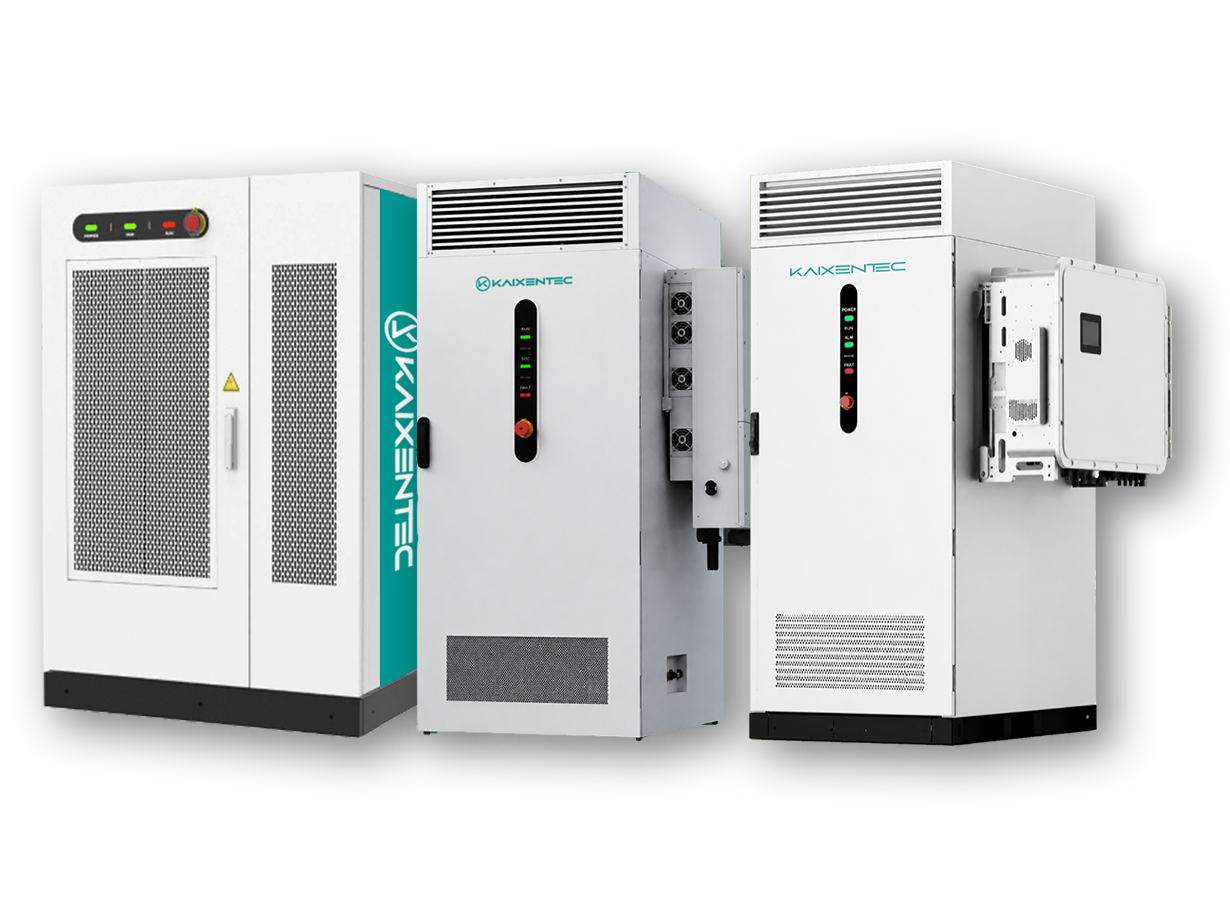

Citadel HPCS
All-in-one hybrid energy storage with integrated hybrid inverter.
Overview
The Citadel HPCS Series is a high-performance all-in-one battery energy storage system engineered for demanding commercial and industrial applications. Combining Grade A LFP battery technology, a high-efficiency bidirectional PCS, intelligent BMS, integrated EMS, and advanced air or liquid cooling, it delivers exceptional performance, safety, and reliability. Designed for peak shaving, demand charge management, renewable energy integration, backup power, EV charging, and microgrids, the system features modular expansion, rapid response, intelligent energy management, multi-level fire protection, and seamless grid support to maximize operational efficiency and return on investment.
Technical Parameters
For more technical information, please refer to the product Technical Specifications.
| Model | 261KWh-125KW-L-HPCS | 208KWh-50KW-L-HPCS | 50KWh-30KW-A-HPCS |
|---|---|---|---|
Nominal energy | 261 kWh | 208 kWh | 51.2 kWh |
Nominal power | 125 kW | 50 kW | 30 kW |
Nominal voltage (AC) | 400 V | 400 V | 400 V |
Cell capacity | 314 Ah | 314 Ah | 100 Ah |
IP rating | IP54 | IP55 | IP54 |
Reference weight (t) | ≈2.1 | ≈2.05 | ≈0.97 |
Cooling method | Liquid-cooled | Liquid-cooled | Liquid-cooled |
